Disco de corte T41 de 14 pulgadas | 14” x 7/64” x 1” | Rueda de corte de 350 mm

Qing Yang® 14 inch Cutting disc Professional Manufacturer – T41 Industrial Cutting Solution

Ventajas del producto

• ​​2.8mm ultra-thin design​​: 350×2.8×25.4mm T41 specification achieves higher material utilization and reduces cutting loss

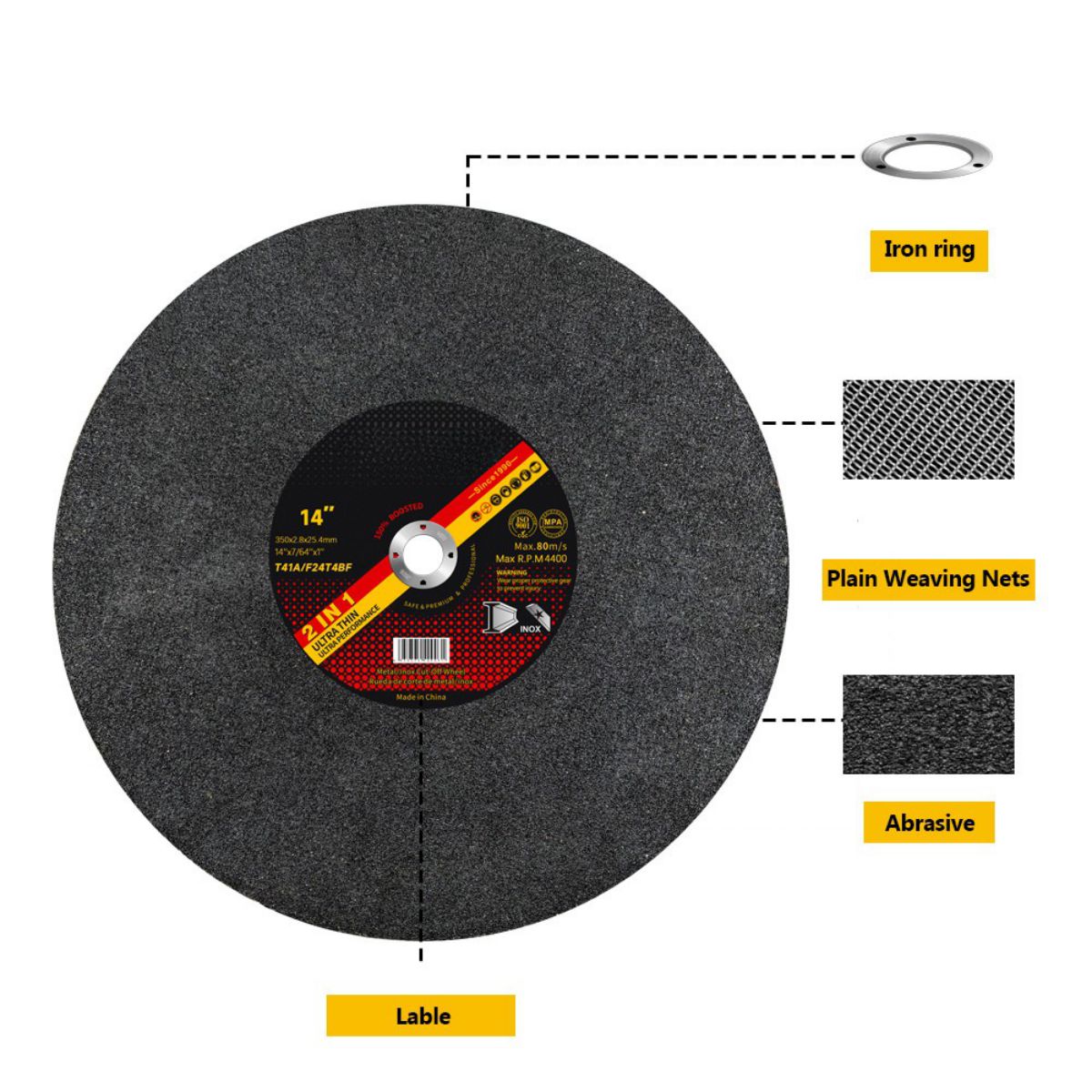

• ​​Double glass fiber mesh reinforcement​​: Using double-layer fiber mesh technology, the breaking speed reaches 80m/s
• ​​Multi-scenario adaptability​​: Perfect match for DeWalt®, Makita® and other brands 14” x7/64” x1” specification angle grinders

Parámetros técnicos

Material and process features

Use vacuum forming technology to ensure uniform distribution of abrasives:

• Aluminum oxide substrate hardness reaches Mohs 9
• Fiberglass mesh density is 30% higher than conventional products
• Resin binder is UL certified

Typical application areas

1. ​​Steel structure processing​​: H-beam, I-beam cutting
2. ​​Pipeline engineering​​: Maximum cutting SCH80 grade carbon steel pipe
3. ​​Shipbuilding​​: Cutting of ship steel plates below 12mm
4. ​​Railway transportation​​: Turnout rail maintenance operations

Capacidades de servicio personalizado

Supports personalized solutions similar to 3M® Cubitron™ series:

• Color logo customization (red/blue/yellow optional)
• Packaging specification adjustment (single blister or 10 pieces/box)
• Fine-tuning of performance parameters (3.0mm thickened version available)

Global market performance

Market share in Saudi Arabia, Brazil and other countries continues to increase, mainly replacing the mid-range product lines of Tyrolit® and PFERD®. Monthly shipments in South America are stable at more than 200,000 pieces.

Procurement policy description

• Cantidad mínima de pedido: 100.000 piezas
• Sample policy: 3-piece test packs are provided
• Delivery cycle: 35 days for regular orders by sea

Compromiso de calidad

Through ISO9001:2015 system certification, all 14 inch cutting discs are subjected to:

• Static balance test (deviation <0.5g)
• Radial runout test (<0.3mm)
• Burst speed test (120% of the standard value)

​​Aviso Legal​​: All third-party brand names and trademarks mentioned in this article belong to their respective owners and are only used for product performance description purposes. Qing Yang® cutting disc is an independent technology product and has no direct association with the brand mentioned.

Note: This product complies with ANSI B7.1-2010 safety standards and is recommended to be used with ANSI Z87.1 certified protective gear. 350mm metal cutting disc is particularly suitable for high-power cutting equipment above 7.5KW.
